Our Exceed Corporation’s UV digital inkjet printer is created to meet the requirements of both small scaled customized and large-scale industrial production of various materials that need surface inkjet printing.  With high definition, high durability, high simulation, high stereoscopic sense, it enriches the flexibility and dynamic of the printed surface, thus making products to be value added. The ink we use is clean and environmentally-friendly and the printing effect looks fresh and beautiful.  Our choice of print head is strongly anti-pollution whereas UV lamp functions accurately and is durable.  The 3D concave and convex effect looks lifelike and the overall appearance are impressive and at the same time offer vivid sense of touching.  With large-format design, our machine can serve different sizes of required products.

     精工SPT1024GS喷头特点

      SEIKO SPT1024GS喷头拥有72mm的喷嘴宽度，360DPI的物理精度，30KHZ的点火频率，以及7-35PL的可变墨滴，为诸如纺织、标签、包装、陶瓷、高级制造业和其它产品装饰等数码喷墨打印的应用提供了无与伦比的可靠性。支持6级灰度打印,从小墨滴7PL到大墨滴35PL，单点打印的点火频率高于30khz，使SEIKO 1024GS喷头实现高速度、高效能和高质量的图像输出，喷头内置EPROM存储器,用户可根据自身需求设定数据,以满足市场多样化，对于高产量喷头，1024GS利用墨水通道分流技术，实现墨水的快速供应，让所有的喷嘴在同一时间实现更高的喷射频率。

SEIKO 1024GS的喷头材质：全钢架构，耐装机及抗打击能力好。

优势：喷头底部有墨水加温系统，而且是两侧进行双加温，喷头两边的加温最高可以达到45℃，最低可调整至20℃。SEIKO 1024GS喷头属于串口型接口，串口型接口拆解时插上去不至于将喷头扁平线插反，防止喷头损坏或直接烧毁。 SEIKO 1024GS喷头也是可拆解式的，可直接对喷头进行拆解清洗。

打印速度：高精度生产模式每小时20个平方米，使用寿命：长达3年

SEIKO 1024GS喷头能打印15-20mm高低落差，完全适合凹凸面木门，防盗门，及运动鞋鞋面打印图案的要求。


                                            Features of SPT1024GS print head for high-accuracy work pieces


SEIKO SPT1024GS print head’s nozzle is 72mm wide, with 360dpi physical accuracy, 30KHS ignition frequency and 7-35PL variable ink droplets.  Printing applications provide unmatched reliability for such work pieces as textile, labels, packaging, ceramics, advanced manufacturing and other decorative products.  It supports a 6-level grayscale printing, from small droplets of 7PL to large droplets of 35PL.  Its single-point printing ignition frequency is higher than 30khz, enabling SEIKO 1024GS nozzles to achieve high-speed, high-performance and high-quality image output.  With built-in EPROM memory, users can set data according to their own needs to meet market diversification. For high-output nozzles, the 1024GS adopts ink channel diversion technology to achieve quick ink supply, allowing all nozzles to achieve higher jetting frequency at the same time.

Material of SEIKO 1024GS: All steel structure, resistant to installation and anti-strike

Advantages:  There is an ink heating system at the bottom of the nozzle and it is double-heated on both sides. The maximum heating temperature on both sides of the nozzle can reach 45°C and the minimum can be adjusted to 20°C.

SEIKO 1024GS nozzle is of serial interface. When the serial interface is disassembled, it will not be inserted into the flat line of the nozzle to prevent the nozzle from being damaged or directly burned.  SEIKO 1024GS print head is also detachable and can be disassembled and cleaned directly.

           Print speed: high-accuracy printing mode:  20m2/hour

           Service life:  3 years

SEIKO 1024GS print head supports a 15-20mm height difference for uneven surface printing, completely fulfilling requirements of the concave-convex printing on wooden door, burglar-proof door and sports shoe.

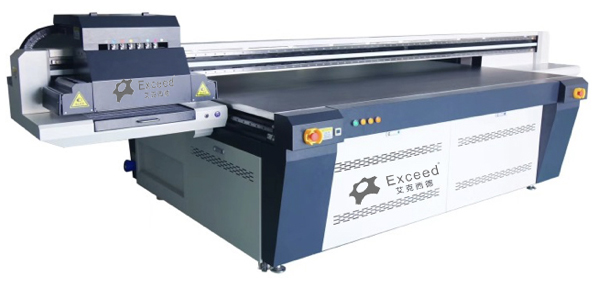

                 UVP2513H平板喷绘机

详细参数

打印尺寸：2500X1300MM

打印色彩：C、M、Y、K、LC、LM、W、V 喷头型号：SEIKO 1024GS

打印高度：10CM(可定制30CM)

打印速度：4pass: 32m²/小时; 6pass: 20m²/小时; （一组喷头测试） 喷头保护：智能触碰式检测自动保护系统

升降功能：自动测高，智能机头升降

墨水特征：采用环保墨水。色彩靓丽，户外耐久度高 的UV墨水喷头控制：软件调整喷头温度和电压

物料处理：橱柜、陶瓷、亚克力、木板、工艺品、油画、玻璃、水晶、金属、皮革、PVC、ABS等固化系统：LED UV灯固化系统

颜色控制：符合国际 ICC 标准，拥有曲线和密度调整功能图像格式：TIFF，JPEG，Postscript3，EPS，PDF等

电力要求：AC220/110±10,50HZ~60HZ，P 1100W

接口方式：高速USB3.0传输接口

操作环境：温度：18-30度相对湿度：40%~70%设备尺寸：4500X1950X1290mm

Detailed parameter

Printing size:  2500x1300mm

Printing colors:  C, M, Y, K, LC, M, W, V

Print head model: SEIKO 1024GS

            Printing height:  1-100mm (can be custom-made to 300mm)

Printing speed:  4 pass: 32m2/hour; 6 pass: 30m2/hour (1 set of print head for testing)

Print head protection:  Intelligent touch-mode detection and automatic protection system

Up-down lifting function:  Automatic thickness measuring; intelligent up-down head lifting

Ink features:  Environmentally-friendly ink, with beautiful colors, wear-resistant to outdoor high UV exposure.

Nozzle control: Software for adjustment of print head temperature and voltage

Media solution:  cupboard, ceramics, acrylic, wooden board, handiwork, oil painting, crystal, metal, leather, PVC, ABS, etc

   Curing system:  LED UV lamp curing system

Color control:  In conformity with international ICC standards, with curve and density adjustment function

File format:  TIFF, JPEG, Postscript3, EPS, PDF, etc

Power supply:  AC220/110±10,50HZ~60HZ，P 1100W

Port interface:  High-speed USB3.0 transmission interface

Operation environment:  Temperature: 18-30 degrees celsius; relative humidity: 40%-70%

Machine dimension (LxWxH):  4500x1950x1290mm

EX-UVP3220H平板喷印机

详细参数

打印尺寸：3200X2000MM

打印色彩：C、M、Y、K、LC、LM、W、V 喷头型号：SEIKO 1024GS

打印高度：10CM(可定制30CM)

打印速度：4pass: 32m²/小时; 6pass: 20m²/小时; （一组喷头测试） 喷头保护：智能触碰式检测自动保护系统

升降功能：自动测高，智能机头升降

墨水特征：采用环保墨水。色彩靓丽，户外耐久度高 的UV墨水喷头控制：软件调整喷头温度和电压

物料处理：橱柜门板、陶瓷、亚克力、木板、工艺品、油画、玻璃、水晶、金属、皮革、  PVC、ABS

等固化系统：LED UV灯固化系统

颜色控制：符合国际 ICC 标准，拥有曲线和密度调整功能图像格式：TIFF，JPEG，Postscript3，EPS，PDF等

电力要求：AC220/110±10,50HZ~60HZ，P 1100W

接口方式：高速USB3.0传输接口

操作环境：温度：18-30度相对湿度：40%~70%

设备尺寸：4900mm[长]× 2800mm[宽]×1450mm[高]

Detailed parameter

Printing size:  3200x2000mm

Printing colors: C, M, Y, K, LC, LM, W, V

Print head model:  SEIKO 1024GS

 Printing height:  10cm (can be custom-made to 30cm)

 Printing speed:  4 pass: 32m2/hour; 6 pass: 30m2/hour (1 set of print heads for testing)

 Print head protection:  Intelligent touch-mode detection and automatic protection system

 Up-down lifting function:  Automatic thickness measuring; intelligent up-down head lifting

   Ink features:  Environmentally-friendly with, with beautiful colors, wear-resistant to outdoor high UV exposure.

Nozzle control: Software for adjustment of print head temperature and voltage

Media solution:  cupboard, ceramics, acrylic, wooden board, handiwork, oil painting, crystal, metal, leather, PVC, ABS, etc

 Curing system:  LED UV lamp curing system

 Color control:  In conformity with international ICC standards, with  curve and density adjustment function

 File format:  TIFF, JPEG, Postscript3, EPS, PDF, etc

Power supply:  AC220/110±10,50HZ~60HZ，P 1100W

 Port interface:  High-speed USB3.0 transmission interface

 Operation environment:  Temperature: 18-30 degrees celsius; relative humidity: 40%-70%

Machine dimension (LxWxH):  4900x2800x1450mm

特殊机型可定制。可以选配无人值守的全自动打印系统。垛料码放后，机械手臂进行自动上下料、定位等流水线操作。无人值守系统软件支持由艾克西德独立提供。

Special model can be custom-made.  All-automatic unmanned system is also an option.  After substrates are stacked up, the up/unloading operation runs, positioning is set and the automatic processing flow will handle the rest.  Software for unmanned system is solely supported by Exceed Corporation.
