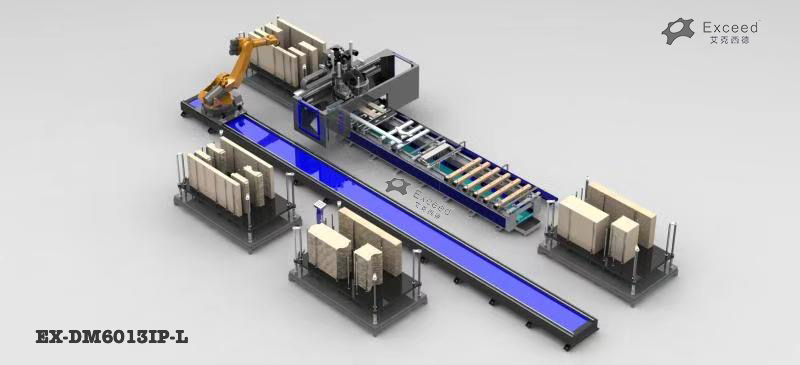

全屋定制室内门楼梯全能型五轴

产品详细



特点:龙门结构5CNC数控加工中心,对实木,人造板或类似材料进行镂铣和钻孔加工,对拼装木门 门边/码头/芯板/锁孔/合页/工艺孔可一次成型。

Features: 5-axis CNC machining center with gantry structure, which performs milling and drilling of solid wood, wood-based panels or similar materials, and can be formed at one time on the edge of the assembled wooden door / dock / core board / keyhole / hinge / craft hole

简要描述:A brief description:

  • K型夹持梁台面 K-shaped clamping beam table
  • 台湾真空系统 Taiwan Vacuum System
  • HSK F63刀具夹头系统 HSK F63 tool chuck system
  • 自主FCAM软件 Autonomous FCAM software
  1. 机器基础结构  Machine infrastructure
  • 高温淬火,振动时效处理的重型整体焊接机身
  • Heavy-duty integral welded body with high temperature quenching and vibration aging treatment
  • 配防尘装置的进口直线导轨
  • Imported linear guide with dust protection device
  • 台湾齿轮齿条机构驱动X轴和Y
  • Taiwan rack and pinion mechanism drives x-axis and y-axis
  • 台湾滚珠丝杆往复机构驱动Z
  • Z-axis driven by Taiwan ball screw reciprocating mechanism
  • 台湾新代数控驱动技术保证高度动态精准镂铣廓形
  • Taiwan's SYNTEC CNC drive technology guarantees highly dynamic and precise profile milling
  • 日本安川免维护数控AC交流伺服电机保证精准镂铣廓形
  • Japan's Yaskawa maintenance-free CNC AC servo motor guarantees precise contour milling
  • 龙门装配5轴头+钻组系统,钻组和主轴快速交替使用
  • The gantry is equipped with a 5-axis head + drilling group system, and the drilling group and the spindle can be used alternately quickly.
  • 斗笠刀库和排列式刀库快速交替使用
  • Quickly alternate between carousal tool magazine and liner tool magazine
  • 高效双工位工作台
  • Efficient double-station workbench
  • Z轴行程 500mm(加工厚板材时可使用长刀具)
  • Z-axis stroke 500mm (long tools can be used when processing thick plates)
  • 运行速度 Running speed
  • 矢量速度 Vector speed 80M/MIN
  • X轴向 x-axis                 40M/MIN
  • Y轴向 y-axis                 70M/MIN
  • Z轴向 z-axis                 25M/MIN
  • 所有驱动机构和线性机构(X/Y/Z)自动中央集中润滑
  • Automatic central centralized lubrication of all drive mechanisms and linear mechanisms (x / y / z axis)
  • 压缩空气管路,直径12mm,气压0.8MPa
  • Compressed air line, diameter 12mm, air pressure 0.8MPa
  • 吸尘管路,压缩空气管路和电路请按照工厂实际情况进行
  • The dust suction pipeline, compressed air pipeline and circuit should be carried out according to the actual situation of the factory

2. 板材尺寸:Sheet size:



双台面加工

Double table processing

单台面加工

Single table processing

板材最大长度Maximum plate length

3000mmX2

6000mm

板材最大宽度Maximum plate width

1300mm

1300mm

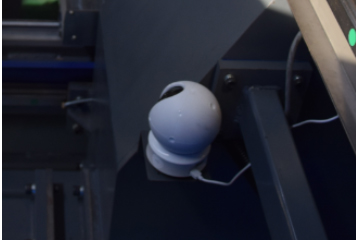

整机监测加工,全程影像记录 Machine monitoring and processing, full image recording

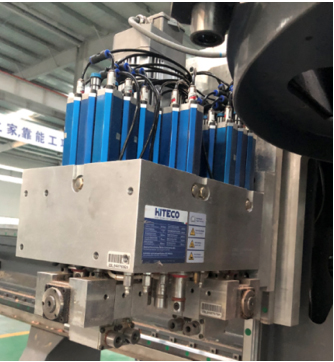

F20钻组,包含 F20 drill unit, including

  • 12个独立垂直钻轴 12 independent vertical drill
  • 8个水平钻轴 8 horizontal drill
  • 2个锯片 2 saw blades



最大钻头长度Max drill length70mm,最大速度max speed8000RPM

最大锯片直径Max saw blade diameter125mm,最大速度max speed10000RPM

意大利Hiteco 5轴头Italy Hiteco 5 axis head

包括:include:

- HSK F 63 快速换刀夹头HSK F 63 quick tool change chuck

-主轴功率12KW,转速24000 rpmSpindle power 12KW, speed 24000 rpm

-正反转Positive and negative

-静态变频器可以保持转速和迅速停止旋转Static frequency converter can maintain speed and stop rotation quickly

-B轴极限范围:+110°-110°b-axis limit range: + 110 ° -110 °

-C轴极限范围:± 360°c-axis limit range: ± 360 °

-水冷却 Water cooling

-除尘罩,气动控制开和闭Dust hood, pneumatically controlled opening and closing

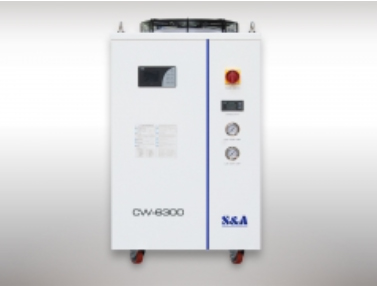

水冷单元组,用于五轴头工作的工业冷水机

Water cooling unit group, industrial chiller for five-axis head work

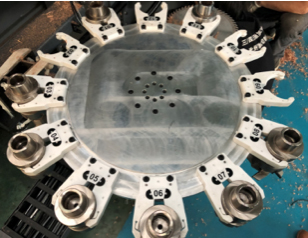

TM12自动换刀刀库(圆盘式)能装载12把刀具

TM12 automatic tool changer magazine (disc type) Can hold 12 tools

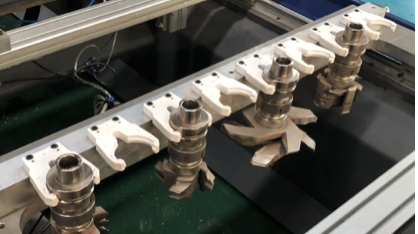

TM10自动换刀刀库(直排式)能装载10把刀具
TM10 automatic tool changer magazine (linear) Can hold 10 tools

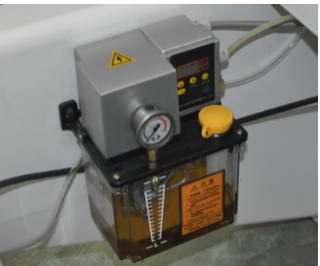

自动集中润滑 Automatic centralized lubrication

通过电子控制,实现移动部件的自动润滑,并保持X/Y/Z三个轴的正确给油量  Through electronic control, automatic lubrication of moving parts is achieved, and the correct oil supply of the three axes x / y / z is maintained

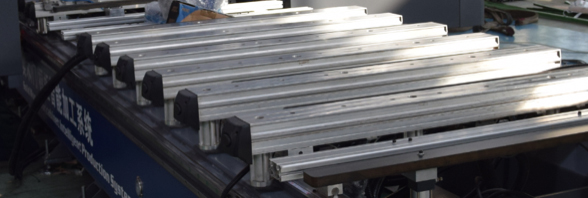

12个条形吸附工作台托架12 strip-shaped suction table bracketsL=1360mm   28个吸盘,型号为28 suction cups, model is120*50*125Q   75*75*125Q   75*115*125Q

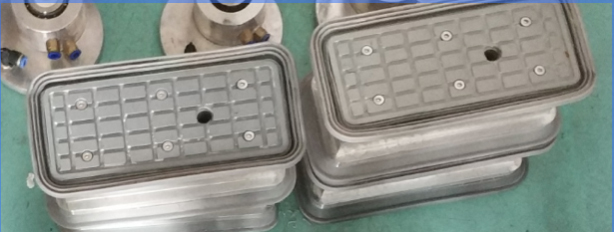

吸盘尺寸120X50mm,75X75mm,75X125mm,高度为125mm

Suction cup size 120X50mm, 75X75mm, 75X125mm, height 125mm

250m³台湾真空泵2台 250m³ Taiwan vacuum pump 2
